Low-Cost, High-Resolution Microscope Cameras
with Powerful Software Included
View and Capture Live or Still High-Resolution Images

Windows & Mac Compatible



High Resolution Cameras
2.0 Megapixel Camera -- PART NO: S-05167
Our Price: $438.95
click for free shipping details

3.0 Megapixel Camera -- PART NO: S-05168
Our Price: $702.95

click for free shipping details

5.0 Megapixel Camera -- PART NO: S-05169
Our Price: $879.95
click for free shipping details

10.0 Megapixel Camera -- PART NO: S-05182
Our Price: $1,049.95
click for free shipping details


Breakthrough technology brings 2.0, 3.0, 5.0 and 10.0 megapixel microscopy within budget for students, hobbyists, and smaller labs.  Until now, the serious microscopist would have expected to pay much more for a microscopy camera that would produce still and video images of comparable quality and resolution.

These cameras produce stills of remarkable resolution, and high-quality moving images that may be projected in real time on computer screens, or saved to DVDs.

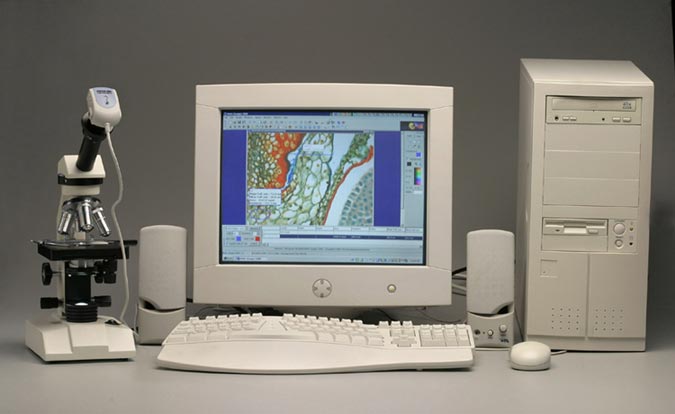

5MP Camera on Compound Microscope
Shown mounted on compound microscope

bulletFits virtually all microscopes.
bulletFits over eyepiece or attaches to C/CS-Mount. Can also replace eyepiece with optional adapter.
bulletComes with latest version of Images Plus software and a generous array of accessories:
- View, enhance, label, print, store, merge, zoom, share, measure and e-mail images with one program.
 - Windows 7 / 8 / 10 and Mac OSX Compatible!
bulletThese cameras require a USB 2.0/USB 3.0 port on your computer.

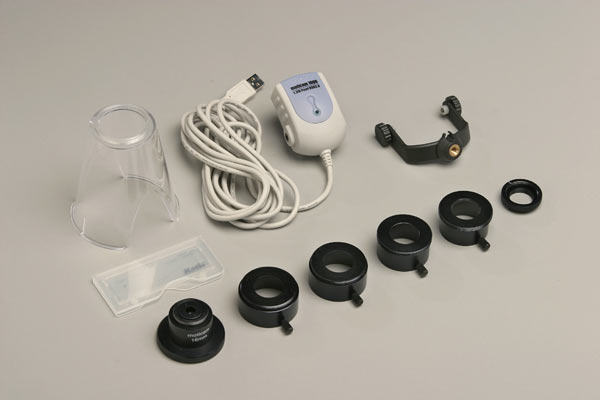

Camera Accessories Included
Included Accessories

Includes

bulletDigital CMOS Camera with USB cable attached. Tripod mount in camera body
bulletC/CS-mount adapter
bullet12mm focusable coated glass lens (16mm on S-01568)
bullet2 adjustable size eyepiece adapters, 30mm and 38mm diameter.
bullet4-dot calibration slide
bulletMacro Viewing Tube
bulletMotic Images Plus Plus 2.0 software CD for PC and MAC OS10
bulletAll cables and power supplies as needed

Specifications

bulletMaximum Resolution / USB Output
S-05167 - 1600 X 1200 - 2.0 Megapixels / USB 2
S-05168 - 2048 X 1536 - 3.0 Megapixels / USB 3
S-05169 - 2592 X 1944 - 5.0 Megapixels / USB 3
S-05182 - 3664 X 2748 - 10.0 Megapixels / USB 3
bulletSensor Size:
S-05167 - 1/3"
S-05168 - 1/2"
S-05169 - 1/2.5"
S-05182 - 1/2.3"
bulletRefresh Rate: 3-28F/Sec, depending on image window size and individual PC specifications
bulletUSB 3 models will work in a USB 2 port.
bulletMinimum illumination = 5 Lux
bulletNo special voltage requirements or power cord necessary since power is supplied through computer.
bulletComputer OS requirements:  Images Plus software operates on Windows® Windows 7, 8, 10 and Mac OS10.
bulletDirect Show, Twain and SDK drivers. Also compatible with Media Cybernetics Image Pro Plus 7.
bulletSoftware is Windows 7, 8, 10 and Mac compatible

Warranty

bulletCamera: 1-Year Limited Manufacturer's Warranty
bulletSoftware: 90-Days
