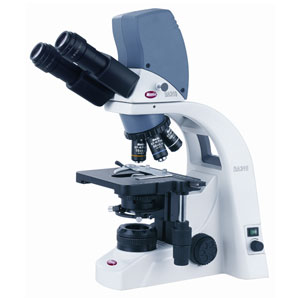

A Superior Laboratory Microscope with Advanced Optics, Illumination & High-Resolution Camera

The Motic BA310 Digital is an exceptionally versatile laboratory microscope designed for the complex and rigorous work performed in advanced teaching and laboratory situations. This digital microscope is a superior scientific instrument that was created to perform meticulous analysis of microorganisms and cells in a professional settings.

This compound, high performance microscope offers uncompromised optical clarity due to its Color Corrected Infinity System (CCIS) optics, and includes an integrated 3.0 mega pixel ultra-high-resolution CMOS camera. When used in conjunction with Moticís Images Plus software the 3.0 mega pixel camera features a remarkable 2048x1536 still or live image resolution, optimal image contrast, and extraordinary optical performance. It also caters to a complete range of microscopy needs, all handled superbly thanks to Moticís brand new, state-of-the-art CCIS designed objectives.

The BA310 Digitalís superior lighting comes standard on this series with a built-in transmitted 6V/30W Quartz Halogen Koehler illumination. This highly sophisticated system includes intensity controls that provide users with a powerful, adjustable light source to meet the delicate and detailed lighting requirements for viewing virtually of any specimen. In fact, the Koehler illumination will dramatically improve user viewing of even the most obsolete specimens.

Slides rest securely on its large, hard coated, chemical resistant 175x40mm stage with an expansive 76x50mm travel range. A key component of this remarkable stage is its completely redesigned slide holder that guarantees a tighter grip to ensure easy and repeatable scanning of numerous slides throughout your day-to-day routine.

The microscope is easily upgradeable to allow for additional phase contrast & darkfield methods, thus ensuring that this model will provide maximum functionality to all users, in a variety of settings. A full complement of options and accessories are available to ensure that your microscope available for customization to meet your specific microscopy needs.


MicroscopeAdvanced upright digital binocular microscope
HeadSiedentopf head w/built in 3.0 megapixel digital camera
Eyepiece Incline30 degree
Interpupillary Distance55-75mm
Optical SystemCCIS Optical System (Color Corrected Infinity System)
Parfocal Distance45mm
FocusCoaxially positioned control & fine knobs, coarse 42mm/rotation, fine 0.2mm/rotation. Min. increment 2µm. Coarse motion torque adjustable. Brass Gears.
ObjectivesPlan 4X, 10X, 40X(R), 100X(R-Oil), (Plan & Phase Contrast models available)
EyepiecesWidefield high eyepoint WF10X/FN20mm w/diopter adjustment
ReticleEyepieces sold with this product accept 25mm Reticles
NosepieceReversed Quintuple Turret Revolving Nosepiece
StageHard coated, built-in low positioned coaxial mechanical stage; 175x140mm surface; 76x50mm travel; 27mm vertical movement
CondenserKoehler; focusable and centerable Abbe condenser N.A. 0.9 w/iris diaphragm and slider slot
Light Distribution20/80
CameraColor; 3 mega pixels Ĺ" CMOS
Resolution2048x1536 capture & view live or still
Refresh Rate6-23 (depending on resolution displayed & computer specs)
White BalanceManually adjusted using Motic Images Plus 2.0
Output480mb/sec Hi-Speed USB 2.0 (not 1.1 compatible), cable included
Camera PowerThrough USB cable from computer
Optional EyepiecesWF20X/N.A0.25 & WF60X/N.A0.80 - S
IlluminationBuilt-In transmitted 6V/30W Quartz Halogen illumination w/intensity controls
Included SoftwareMotic Images Plus 2.0 for PC & MAC
CompatibilityWin 7, 8 & 10; MacOSX
FeaturesSnapshots, annotation, measurement, live image recording, and much more- Click Here to view additional software features.
Power SupplyUniversal power supply (100-240V)
