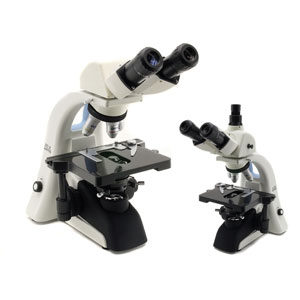

OPTIKA B-352A/B-353A COMPOUND MICROSCOPE WITH ULTRA-BRIGHT LED & ACHROMATIC OBJECTIVE LENSES
M-Depot Item No: AL-01000
List Price: $1,200.00
Our Price: $1,035.95

• Binocular or Trinocular Head
• LED Illumination Equivalent to 35-Watt Halogen
• Cordless & LED Options Available, Please Select One Below
• Total Magnification: 40X, 100X, 400X, 1000X (w/Standard 10X Eyepiece)
• Achromatic Objective Lenses: 4x, 10x, 40xR, 100xR(oil)
• Large Mechanical Stage
• Quadruple Nosepiece
• Plan, Phase Contrast, Infinity, Metallurgical and Epi-Fluorescent Models Available
• Phase Contrast Kit Available
• Switchable 110/230vac
• Connects To A Variety of Cameras
• Anti-Fungal Coating
• Click for B-350 Series Page
• Who is Optika?

---

go to product details

Select Binocular or Trinocular & Corded/Cordless Options Here
Please select one AL-01000 - Binocular B-352A LED - $1,035.95 AL-01020 - Binocular B-352A with Cordless Option - $1,235.95 AL-01100 - Trinocular B-353A LED - $1,135.95 AL-01120 - Trinocular B-353A with Cordless Option - $1,335.95
Quantity

OPTIKA B-352A/B-353A COMPOUND MICROSCOPE WITH ULTRA-BRIGHT LED & ACHROMATIC OBJECTIVE LENSES
An Energy Efficient Professional-Quality Series of Microscopes

The Optika B-352A microscope offers the energy efficient, ultra bright LED illumination which provides the same intensity of a comparable Halogen light source. This microscope is a professional-quality system and allows users the option to run on battery power.

Designed for use in advanced teaching situations and laboratories, the B-352A’s unique LED illumination system is vastly superior to any other microscope in its price range - halogen or LED. Because Optika’s patented Super-Bright, 5-volt LED lasts five times longer - a full 50,000 hours - and provides up to 35% higher efficiency than other manufacturers’ 3-volt LED’s. Users are able to enjoy a spectacular viewing experience even at the highest magnifications.

The B-352A’s light output is equivalent to a 35-watt halogen bulb. This is possible because of the Super-Bright 5v LED and Optika’s special condensing lens, precision-crafted in Europe and designed specifically for LEDs.

Best of all, the cordless option makes it the most sophisticated microscope on the market to offer this level of transportability with the ability to be run entirely off-the-grid. Using the cordless option requires 4AA Alkaline or 2300-2600 mAh rechargeable batteries (recommended). External charger NOT included. The microscope will operate from two to six hours per charge, depending on use of illuminator and has an easy-to-use switch to change from 110/230vac power to the battery option.

This model has the option to add a Phase Contrast kit, which can be a huge time-saver for users whose needs require both Brightfield and Phase Contrast capabilities. Optika also offers Binocular (B-352PH) and Trinocular (B-353PH) models that come with Phase Contrast standard. Plan models (B-352PL and B-353PL), and Plan Infinity models (B-352PLi and B-353PLi), as well as Metallurgical and Epi-Fluorescent models are also available making the B-350 series incredibly versatile. Please Click here to view all B350 series microscope options.

The B-352A is supplied with WF10x/20mm eyepieces which accept 22mm O.D. eyepiece reticles. We offer hundreds of other reticles that are available separately. Click here to see our huge selection. (Note: Only 10x/20mm eyepiece accepts reticles.) You will also need a 22mm eyepiece reticle retainer which can be found here. All of these additional options make this system extraordinarily flexible.

FEATURES:

• 160mm standard optical system with a 20mm field diameter eyepiece included
• WF10x/20mm eyepieces which accept 22mm O.D. eyepiece reticles
• Modern and ergonomic stand made from die-cast aluminum
• Graduated double layer mechanical stage with coaxial controls, adjustable focus tension and focus stop
• Semi-ergo head comfortably accommodates users of all heights with it’s 360° rotatable and 30° inclined
• Diopter adjustment for separate focusing for people who wear glasses
• An extraordinary 5-volt LED illuminator that includes a variable intensity control via a rheostat on the microscope base
• Cordless options include: 5v, 110v/230v white LED with variable intensity control via a rheostat on the microscope base
• N.A. 1.25 Abbe condenser can be centered through a double-control system and adjusted in height through a rack-and-pinion mechanism by means of control knobs located on both sides of the microscope stand
• The condenser includes an iris diaphragm with an aperture that can be adjusted through the use of a graduated reference scale
• The quadruple nosepiece includes four Achromatic, parfocal, parcentered objectives: 4x, 10x, 40xR and 100xR (oil immersion)
• A wide range of affordably-priced options, including Darkfield, Polarizing and more

Who is Optika?

Head Binocular (B-352A); trinocular (B-353A) Head Rotation 360° Head Angle 30° Eyepiece Wide Field; High-Point 10x/20mm Standard,16x/12mm High-Point Optional Interpupillary Adjustment 51-78mm Eyepiece Dioptor Adjustable Individually Nosepiece Quadruple Objectives Achromatic 4x, 10x, 40xR, 100xR (oil); Plan objectives and Phase contrast kit available. Objective Options Plan, Phase Contrast, Infinity, Metallurgical and Epi-Fluorescent microscope configurations are also available. Parfocal Yes Parcentered Yes Stage Double layer with mechanical stage. Focusing Coaxial coarse and fine focus system, with focus stop. Stage Size 160mm X 142mm Stage Travel 76mm X 52mm Condenser Abbe condenser, N.A. 1.25 Illuminator 5v, white LED with variable intensity control. Power Supply Switchable Between 110/230vac Cordless Option 4 AA Batteries required Battery Type 4 AA Alkline or 2300-2600 mAh rechargable (recommended). External charger not included. Battery Life 2-6 Hours per charge Dimensions 15” x 11” x 21” Shipping Weight 20 lbs.

Additional Product Information Reticle Styles C-Ring Reticle Retainers Warranty Information

---
